TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X9.5 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R22 WHEEL - 22X9.5 W/5" BS W/MINOR TRIMMING

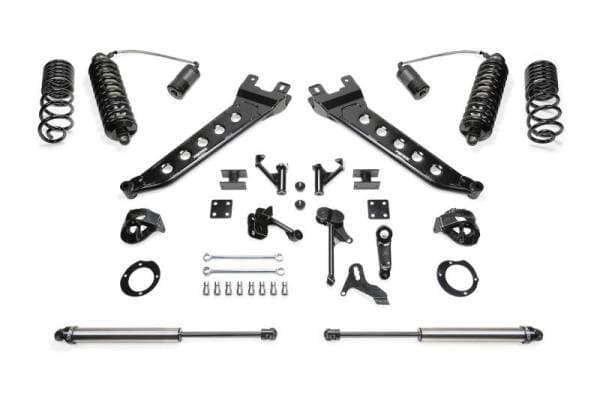

Radius Arm Lift System; 5 in. Lift; w/Dirt Logic 4.0 Resi Coilovers; Dirt Logic Shocks
The system utilizes the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory TracK Bar bracket. The Dirt Logic 4.0 Coilover features a stainless steel body for maximum corrosion resistance with a remote billet aluminum reservoir. These Dirt Logic 4.0?s provide a super smooth highway ride with outstanding offroad damping for rough terrain.
Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
