TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 315/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.

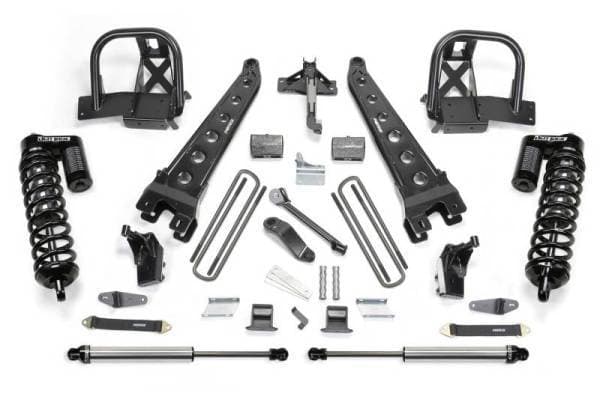

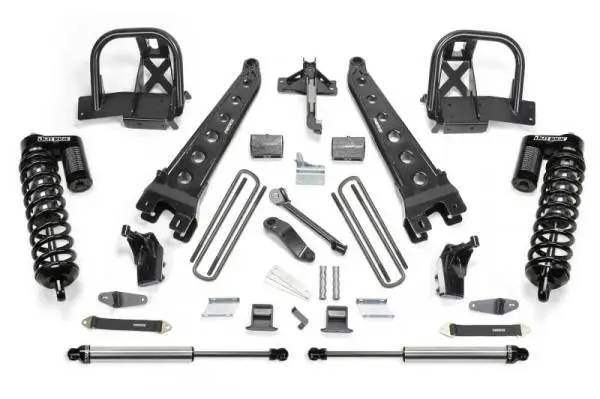

Radius Arm Lift System; w/DLSS Shocks; 6 in. Lift
Obtain maximum front suspension damping for Super Duty's with our Dirt Logic 4.0 Stainless Steel Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/4'' thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Stainless Steel Coilover piggyback reservoir shocks. Also included in this system are billet sway bar end links with heim ends and quad layer limiting straps. Includes rear 2.25 Dirt Logic Stainless Steel shocks.
Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
